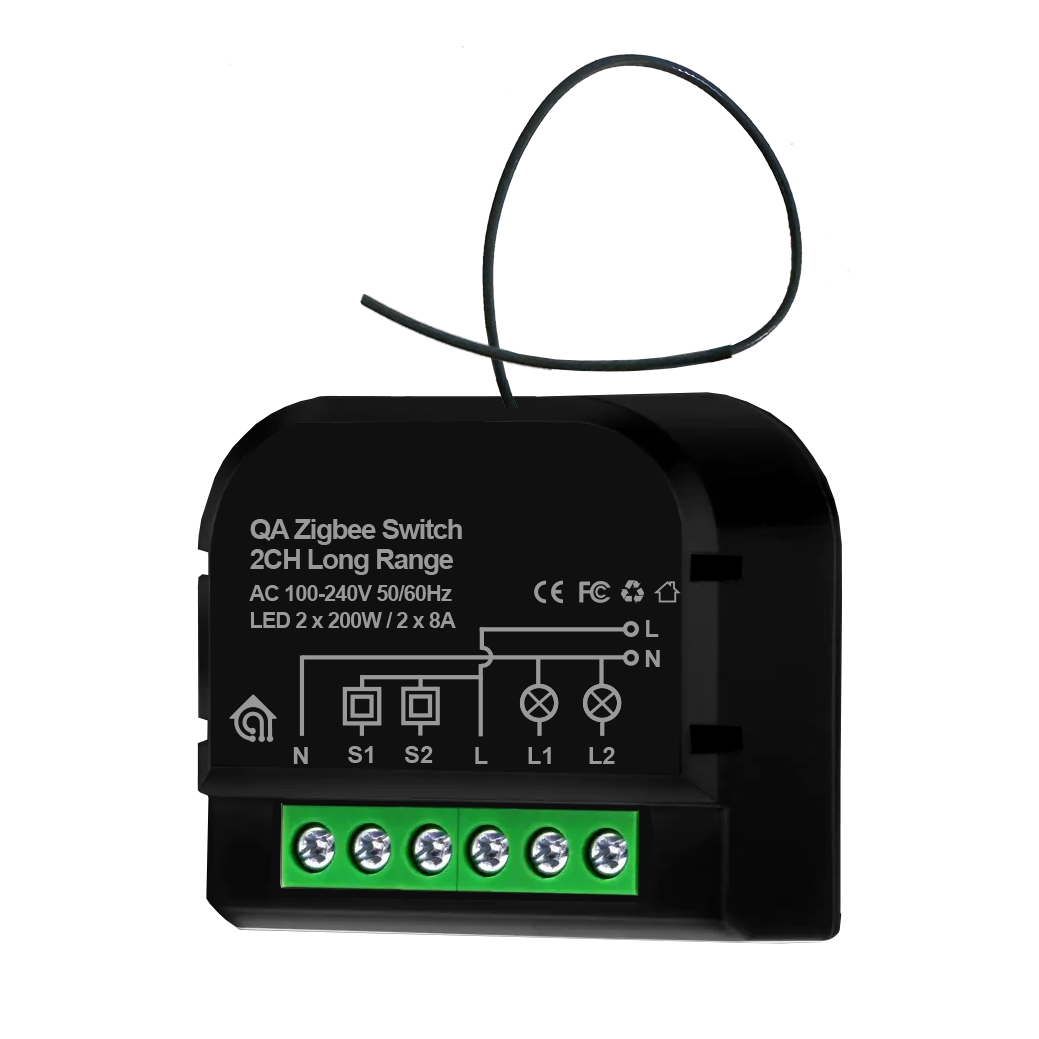

2-channel Zigbee relay for controlling AC loads, ideal for lighting. DIN rail mount included.
Features Zigbee module with iPEX antenna for better performance, high-quality internal relay and electrical noise filters.
Maximum power: 2 x 200W
See how it works
Downloads:
This device uses Tuya Zigbee technology which requires a Tuya Zigbee gateway, updated to the latest version.
Features:
• External 3dBi antenna with greater range and stability
• Compatible with traditional switches or push buttons
• High quality and durable relay
• Native integration in Zigbee2Mqtt for use with Home Assistant
• Does not reset via switch
• Zigbee Mesh router
Applications:
• Lighting control
Uses the Tuya Zigbee platform through the Tuya Smart, Smart Life or Quero Automação App (recommended).
IMPORTANT: Communication via Zigbee network, requires a Tuya Zigbee Gateway (sold separately). This module is not Wi-Fi.
Specifications:
• External 3dBi antenna with greater range
• Includes DIN rail mount
• Size: 44mm x 42mm x 22mm - fits in standard wall boxes
• Can be used with common switch or push button
• Parallel activation with other modules and smart switches via Zigbee network or electrical connection (local control)
• Virtual parallel works without Internet connection
• Power outage return configuration: on, off or last state
• High quality and durable internal relay
• Maximum load: 2 x LED 200W or 8A (resistive load)
• Tuya Zigbee 3.0 module with 32-bit ARM Cortex-M33 CPU
• Zigbee Router function (repeats signal)
• Phase + Neutral or Phase + Phase connection (110V-240V)
• Requires Tuya Zigbee Gateway (sold separately)
• Does not reset via switch
• After adding to Tuya App, can be controlled by Alexa and Google Assistant
Commercial conditions:
• Product in stock with immediate shipping directly from China Warehouse
• 12-month warranty by Quero Automação (manufacturer and distributor)
