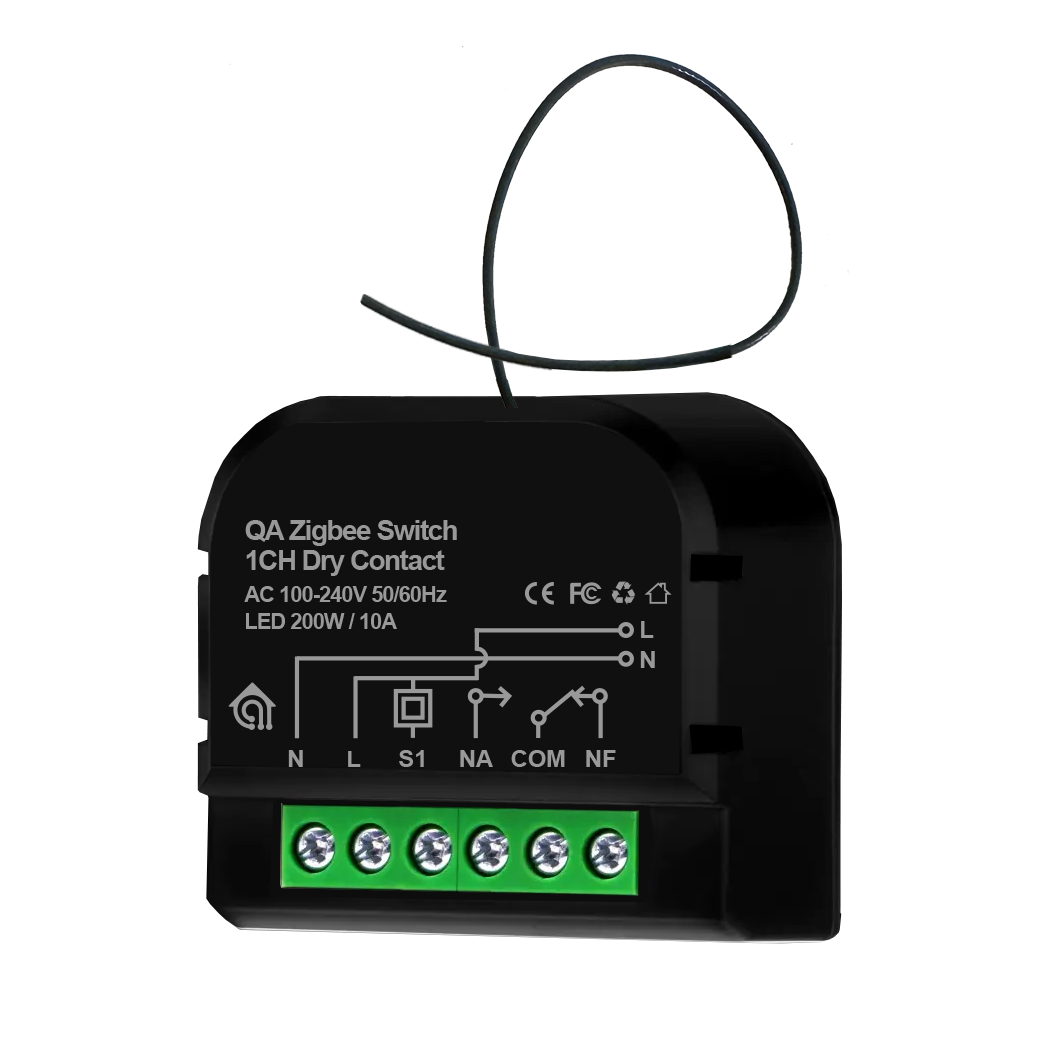

1-channel Zigbee relay for controlling AC loads, DC loads and dry contacts. Ideal for lighting, AC contactor activation and dry contact closure in various equipment. DIN rail mount included.
Features Zigbee module with iPEX antenna for better performance, high-quality internal relay and electrical noise filters.
Maximum power: 200W
See how it works
Downloads:
This device uses Tuya Zigbee technology which requires a Tuya Zigbee gateway, updated to the latest version.
Features:
• External 3dBi antenna with greater range and stability
• Compatible with traditional switches or push buttons
• Features Normally Closed (NC), Normally Open (NO) and COM outputs to control AC 100-240V, DC 12-24V equipment or dry contact
• High quality and durable relay
• Native integration in Zigbee2Mqtt for use with Home Assistant
• Does not reset via switch
• Zigbee Mesh router
Applications:
• Lighting control
• Control of DC loads
• Dry contact closure (1s pulse function available)
Uses the Tuya Zigbee platform through the Tuya Smart, Smart Life or Quero Automação App (recommended).
IMPORTANT: Communication via Zigbee network, requires a Tuya Zigbee Gateway (sold separately). This module is not Wi-Fi.
Specifications:
• External 3dBi antenna with greater range
• Includes DIN rail mount
• Size: 44mm x 42mm x 22mm - fits in standard wall boxes
• Can be used with common switch or push button
• Parallel activation with other modules and smart switches via Zigbee network or electrical connection (local control)
• Virtual parallel works without Internet connection
• Power outage return configuration: on, off or last state
• Larger internal relay, high quality and durable
• Maximum load: LED 200W or 10A (resistive load)
• Tuya Zigbee 3.0 module with 32-bit ARM Cortex-M33 CPU
• Zigbee Router function (repeats signal)
• Phase + Neutral or Phase + Phase connection (110V-240V)
• Requires Tuya Zigbee Gateway (sold separately)
• Does not reset via switch
• After adding to Tuya App, can be controlled by Alexa and Google Assistant
Commercial conditions:
• Product in stock with immediate shipping directly from China Warehouse
• 12-month warranty by Quero Automação (manufacturer and distributor)
